Wheel Loaders

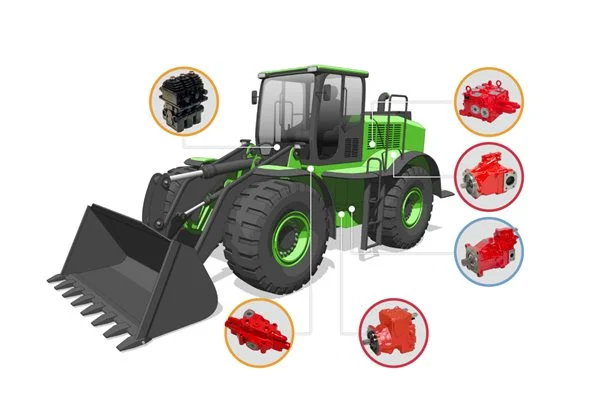

wheel loaders labelled diagram

KDRDE5K/KWE5K

The KDRDE5K and KWE5K series valves are proportional pressure-reducing and directional control valves of cartridge type. Available in 12 and 24 VDC versions, they can be used in combination to provide various compact control solutions for agricultural and mobile machinery.

  • 90 bar supply pressure
  • 10 l/min and 16 l/min flow rates
  • Common cavity for KDRDE5K and KWE5K
  • Excellent hysteresis

KLW

The KLW is a flow-sharing, load-sensing main control valve specifically designed for wheel loaders. Their low hysteresis and excellent pressure drop characteristics provide superior performance and efficiency.

  • Post-compensated, flow-sharing design
  • Integrated lock valves and integrated damping valve for ride control
  • 400 bar continuous pressure rating Regeneration and double actuator ports available
  • Three sizes with sectional flow rates of 180, 250 and 400 l/min

For datasheet, please contact Kawasaki.

PV/ERU Hydraulic and Electronic Controls

Kawasaki’s range of pilot controllers offer unparalleled controllability and superior operator feel. Available for hydraulics pilot control in the PV range, or electronics control in the ERU range they are suitable for a wide variety of industrial vehicles.

  • Joystick, foot pedal, dual and single axis versions available
  • Wide variety of handle options including potentiometer with integral amplifier
  • FNR function for transmission control
  • Integral damping feature on foot pedal type
  • PWM and CanBus ERU versions available

K3VL

The K3VL series swash plate type axial piston pumps are designed to satisfy a variety of construction and off-highway applications where a medium to high pressure variable displacement pump is required.

  • 28 to 200cc displacements
  • 320 bar continuous pressure rating
  •  Load sensing, torque limiting and electronic displacement control
  •  Integral impellor pump available on 200cc unit



K3VLS

Kawasaki’s new medium duty pump, the K3VLS, has been developed for machines and equipment that use a load sensing control system and/or electric displacement control systems. Its launch follows extensive research and development as our engineers combined efficiency with simplicity to deliver the most technologically advanced pump on the market.

  •  50, 65, 85, 105, 125 & 150cc displacements
  •  280 bar continuous pressure rating
  •  350 bar maximum pressure rating
  •  Load sensing, torque limiting, power shift and electronic displacement controls

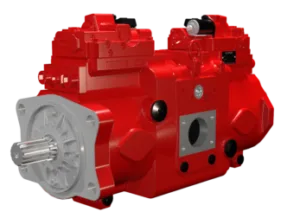

K3V/K5V/K7V

The K3V/K5V/K7V pump range has been specifically designed to meet the demands of hydraulic excavators and other mobile machinery. The introduction of the K7V offers a step change in hydraulic pump efficiency.

  • 63 to 212cc displacements available
  • 350 bar continuous pressure rating
  • Single, tandem and parallel versions
  • Wide range of power, pressure and displacement controls available.

K8V

The K8V series is Kawasaki’s new closed loop pump with excellent controllability and superior efficiency. It is used in hydrostatic transmissions ona variety of off-highway machinery.

  • 71, 90 and 125cc displacements
  • 400 bar rated pressure
  • Electronic and hydraulic displacement control
  • Through drive and tandem versions available

M7V

The M7V series is a high speed variable displacement swash plate type axial piston motor. It is suitable for, but not limited to, use in hydrostatic transmissions, drill rigs and crane winch systems.

  • 85, 112, 160 and 212cc displacements
  • 400 bar continuous pressure rating
  • Electronic and hydraulic displacement control
  • Fixed displacement version available
  • Compact design
