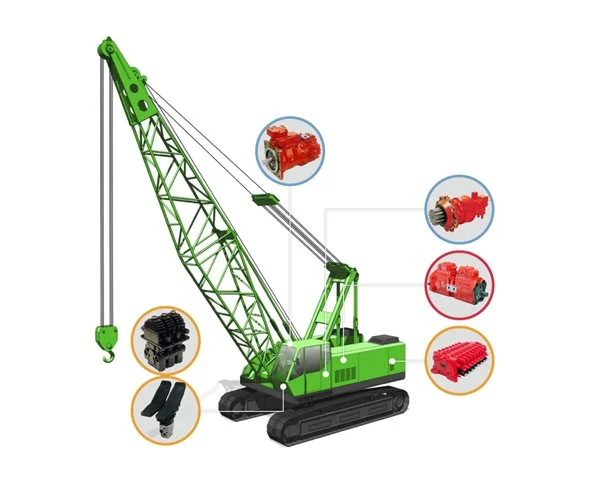

Crawler Drills
K-Axle
The K-Axle is the all new high speed electric motor and pump unit for construction vehicles. A scalable 50cc single or tandem unit able to operate at speeds of up to 5,000 rpm
- Compact size
- High efficiency
- Highly flexible
KDRDE5K/KWE5K
The KDRDE5K and KWE5K series valves are proportional pressure-reducing and directional control valves of cartridge type. Available in 12 and 24 VDC versions, they can be used in combination to provide various compact control solutions for agricultural and mobile machinery.
- 90 bar supply pressure
- 10 l/min and 16 l/min flow rates
- Common cavity for KDRDE5K and KWE5K
- Excellent hysteresis
KMX
The KMX series consists of three sizes of main control valve designed specifically for the control of hydraulic excavators. Their semi-monoblock construction provides a very compact installation for main and pilot circuits. The KMX gives excellent controllability and superior system efficiency.
- Negacon, Posicon and Electronic Posicon systems supported.
- 130, 240 and 360 l/min service flow rates
- 350 bar continuous pressure rating
- Straight travel, swing priority and circuit confluence features include
KLSV
The KLSV is a series of flow-sharing, load-sensing main control valves for multifunction construction machinery. Their low hysteresis and excellent pressure drop characteristics provide superior performance and efficiency.
- Post-compensated, flow-sharing design
- Hydraulic pilot and electro-hydraulic actuation
- 400 bar continuous pressure rating
- Special versions for wheel loaders, midi excavators and skid steer loaders
- Three sizes with sectional flow rates of 180, 250 and 400 l/min
PV/ERU Hydraulic and Electronic Controls
Kawasaki’s range of pilot controllers offer unparalleled controllability and superior operator feel. Available for hydraulics pilot control in the PV range, or electronics control in the ERU range they are suitable for a wide variety of industrial vehicles.
- Joystick, foot pedal, dual and single axis versions available
- Wide variety of handle options including potentiometer with integral amplifier
- FNR function for transmission control
- Integral damping feature on foot pedal type
- PWM and CanBus ERU versions available
K3VL
The K3VL series swash plate type axial piston pumps are designed to satisfy a variety of construction and off-highway applications where a medium to high pressure variable displacement pump is required.
- 28 to 200cc displacements
- 320 bar continuous pressure rating
- Load sensing, torque limiting and electronic displacement control
- Integral impellor pump available on 200cc unit
K3V/K5V/K7V
The K3V/K5V/K7V pump range has been specifically designed to meet the demands of hydraulic excavators and other mobile machinery. The introduction of the K7V offers a step change in hydraulic pump efficiency.
- 63 to 212cc displacements available
- 350 bar continuous pressure rating
- Single, tandem and parallel versions
- Wide range of power, pressure and displacement controls available.
M7V
The M7V series is a high speed variable displacement swash plate type axial piston motor. It is suitable for, but not limited to, use in hydrostatic transmissions, drill rigs and crane winch systems.
- 85, 112, 160 and 212cc displacements
- 400 bar continuous pressure rating
- Electronic and hydraulic displacement control
- Fixed displacement version available
- Compact design
M3X/M3B
The M3X and M3B series are swash plate type axial piston motors in fixed (M3X) and variable (M3B) displacement versions. They are used extensively in mobile crusher drives, cranes and drill rigs.
- 200, 280, 530 and 800cc displacements
- 300 bar continuous pressure rating
- Constant horsepower control option
- Available with parking brake
